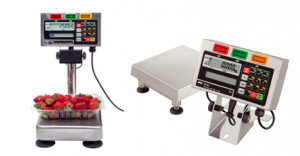

ميزان طبلية لمراجعة المنتجات FS

سرعة عالية فى الوزن و المقارنات

ميزان طبلية لمراجعة المنتجات FS يؤدى أفضل فى العمليات الانتاجية المتعلقة بالاعداد و الشحن, مصنوع من الستانلس ستير, يسهل تنظيفه.

Features

يتميز ميزان طبلية لمراجعة المنتجات FS  ب:

  • ميزان طبلية لمراجعة المنتجات FSUltra high-speed weighing with 0.5-second stabilization
  • Distinct tricolor LEDs for fast and error-free comparator judgment
  •  Take-away checkweighing using the auto-tare function
  • Washable and hygienic stainless steel (SUS304) display unit and weighing pan
  • Waterproof and corrosion-resistant load cell*
  • Fast data acquisition with a refresh rate of 20 times/second
  • Large memory of 100 comparator settings
  • 60-segment analog sweep (horizontal bar) display for intuitive filling control
  • Simple operation mode to prevent accidental changes to the settings
  • Sealed Lead Acid (SLA) rechargeable battery for approx. 80 hours operation (optional)
  • The display unit available separately as an indicator for check weighing scales (FS-D)
Specifications
Model Capacity Minimum display
(Selectable by user)
Pan Size (mm)
W x D
FS-6Ki 6 kg 0.002 kg
0.001 kg
0.0005 kg
250 x 250
FS-15Ki 15 kg 0.005 kg
0.002 kg
0.001 kg
250 x 250
FS-30Ki 30 kg 0.01 kg
0.005 kg
0.002 kg
380 x 300

**** g, oz, lb and lb-oz also available

Specifications (FS-D)
Input sensitivity 0.2 µV / d (d: the smallest minimum display of kg)
Input signal range 0 mV to 13 mV
Load cell excitation voltage DC 5V ± 5% (no remote sensing)
Load cell drive capacity Up to four 350 Ω load cells
Temperature coefficient Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.)
Span: ±0.001% / °C of reading (typ.)
Linearity ±0.01% of full scale
