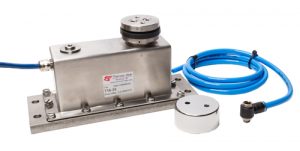

The T16 Fluid Damped single point platform load cell is a reliable, simple, high precision and low cost solution for dynamic weighing applications, even with off-centre loading.  The internal fluid damps the vibrations of the sensing element, offering faster settling times, increased weighing speeds and increased load cell life when compared to a non-damped load cell.  It is thereforeideal for high speed check weighing and filling machines.

The internal aluminium sensor element is surrounded by a grade 316 stainless steel housing that is protected to IP68 by a special venting kit – allowing for wash-down in harsh environments that require regular cleaning.  Its maximum operating temperature is a high 70 °C.

The excellent durability of this load cell comes from its integrated on-centre overload protection, with a dual stop providing bi-directional protection from upwards and downwards overload.

It is approved to OIML C4 (4000 divisions) as standard, with a durable screened polyurethane cable; this provides a higher level of resistance to chemicals, UV radiation, cuts and damage than a PVC cable.

Make an inquiry about this high precision, viscous damped load cell.

Key Features
  • Capacity range: 5-35kg
  • High accuracy and fast settling time with off-centre dynamic loads
  • Bi-directional overload protection
  • Complies with OIML R60 regulations up to 4000 divisions (C4)for scales according to EN 45501
  • Viscous damped aluminium alloy sensing element; 316 stainless steel housing
  • IP68 protection
  • 500mm x 500mm, max. platform size (with load cell placed centrally under platform)
  • Durable polyurethane cable, ideal for wash-down environments
  • 2 year warranty
Typical Applications
  • High speed check weighing
  • Form, fill, seal machinery
  • High speed bagging, filling and dosing machines
  • Dynamic weighing applications

Ask a question about this competitively priced, high accuracy single point load cell.T16 Fluid Damped
