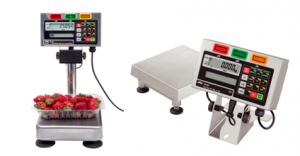

FS-i Waterproof Checkweighing Scales

High-speed Weighing & High-speed Judgment!

The FS-i Waterproof Checkweighing Scales perform best in product preparation and packaging environments. It’s fully stainless steel construction ensures longevity in the harshest areas. Easy to clean and approved for trade by N.M.I. Australia.

Brochure (PDF 534KB)

Send An Inquiry

Features

Ultra high-speed weighing with 0.5-second stabilization
Distinct tricolor LEDs for fast and error-free comparator judgment
Take-away checkweighing using the auto-tare function
Washable and hygienic stainless steel (SUS304) display unit and weighing pan
Waterproof and corrosion-resistant load cell*
Fast data acquisition with a refresh rate of 20 times/second
Large memory of 100 comparator settings
60-segment analog sweep (horizontal bar) display for intuitive filling control
Simple operation mode to prevent accidental changes to the settings
Sealed Lead Acid (SLA) rechargeable battery for approx. 80 hours operation (optional)
The display unit available separately as an indicator for check weighing scales (FS-D)

Specifications

Model	Capacity	Minimum display (Selectable by user)	Pan Size (mm) W x D
FS-6Ki	6 kg	0.002 kg 0.001 kg 0.0005 kg	250 x 250
FS-15Ki	15 kg	0.005 kg 0.002 kg 0.001 kg	250 x 250
FS-30Ki	30 kg	0.01 kg 0.005 kg 0.002 kg	380 x 300

**** g, oz, lb and lb-oz also available

Specifications (FS-D)

Input sensitivity	0.2 µV / d (d: the smallest minimum display of kg)
Input signal range	0 mV to 13 mV
Load cell excitation voltage	DC 5V ± 5% (no remote sensing)
Load cell drive capacity	Up to four 350 Ω load cells
Temperature coefficient	Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.) Span: ±0.001% / °C of reading (typ.)
Linearity	±0.01% of full scale
