خلايا وزن سنتر T12
تفاصيل المنتج

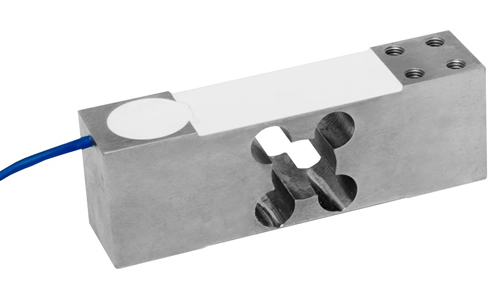

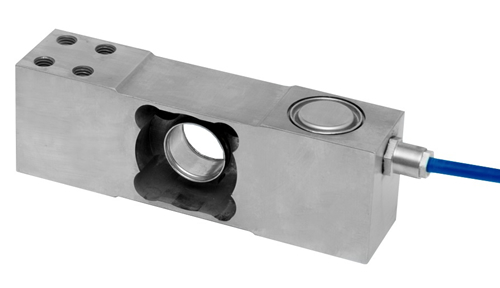

خلايا وزن سنتر T12 is manufactured from stainless steel and its design provides for high accuracy weight measurement, even with off-centre loads and in harsh environments.
Its hermetically sealed and fully welded construction, with protection class IP68/IP69K, is essential for use in applications involving regular wash-down at high temperatures and pressures, such as the food and pharmaceutical industries.
With OIML C3 approval (3000 divisions) and a screened 6-wire polyurethane cable this load cell offers high accuracy andinsensitivity to electrical noise.
Make an inquiry about this cost-effective single point load cell.
Key Features
- Capacity range: 15-400kg
- High accuracy with off-centre loads
- Stainless steel, fully welded and hermetically sealed, protected to IP68/IP69K
- Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
- 600mm x 600mm, or 800mm x 800mm, max. platform size (with load cell placed centrally under platform)
- Polyurethane cable
Typical Applications
- Weighing platforms up to 800mm x 800mm
- Bagging, filling and dosing systems
- Checkweighers
- Small buckets and hoppers
- Big bag (FIBC) filling
- Medical scales
Ask a question about this competitively priced, high accuracy single point load cell.
